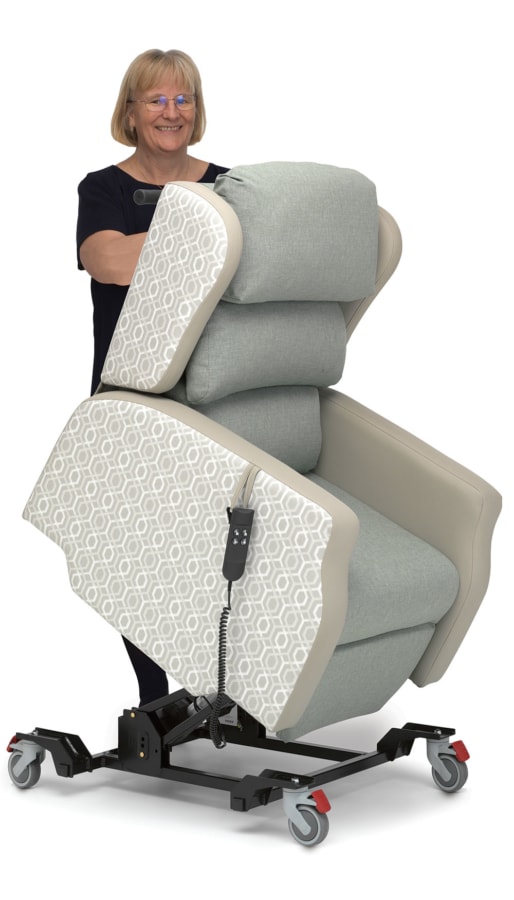

Madison Rise Recliner Porter
All the benefits of a health rise recliner chair, but with the additional versatility of the large lockable castors for moving people around
Fabric Shown:
Outer arms and wings in Highland Zen 905 Dove; inside arms and wings in Valencia Laurel and inner in Highland Matte Cardamom.
The Madison with its Dual Tilt in Space motor maximises the pressure and posture management options for the carer/user with independent backrest and leg rest movement as well as a rise function for ease of standing.
Choose from a range of six removable and interchangeable back cushion styles to complement the choice of eight removable and interchangeable seat cushions – each option being designed with different postural and pressure management qualities. These interchangeable options ensure that the chair can be easily adapted over time for changing conditions or new users, giving greater longevity of usage.
The chair also comes with optional sliding footplate and seat depth adjustment as well as other accessories.
Available as an Express Chair, click our express van to find out more!
|
Its uniqueness lies in the Dual Tilt in Space mechanism combined with the interchangeable pressure management seat and back cushions, with the added advantage of being able to move users around easily, all enabling excellent comfort, postural and pressure management. The Dual Tilt in Space (DTIS) mechanism make this chair ideal for clients with changing and deteriorating neurological conditions. It allows for multi positioning of the legs to reduce oedema and fluid retention, leading to increased comfort. The positional options can support people who have problems swallowing as well as those with blood pressure e.g. postural hypotension. The Madison chair has been designed to support safe manoeuvring and reduce the number of moves required for those clients who can become distressed or have significant pain during hoisting:
The chair can also be used as part of a 24-hour postural care programme to reduce the risk of skin breakdown and its features also ensure that a user can be repositioned to allow for optional occupational performance, thus allowing an individual to engage in activities they want to do. The chair can be used with either a mobile or overhead hoist to support safe moving and handling techniques for carers. This chair can be used in any health environment or for home care and is designed to blend into the décor. Environments:
|
|
For more information on seating posture and assessment please see our downloadable Clinical Posture Guide in the Brochure Section.
The Madison porter chair with Dual Tilt in Space (DTIS) mechanism is ideal for clients with changing and deteriorating neurological conditions. It allows for multi positioning of the legs to reduce oedema and fluid retention, leading to increased comfort. It can be used with either a mobile or overhead hoist to support safe moving and handling techniques for the carers.
It comes with the following key features as standard. There is the option to purchase additional features and these are detailed in the Optional Accessories Section.
For more information on seating posture and assessment please see our downloadable Clinical Posture Guide in the Brochure Section.
MechanismsThe Madison is available with a Dual Tilt in Space (DTIS) mechanism. The Tilt in Space movement allows the seat to back angle to remain the same whilst the whole seating system is tilted backwards which prevents shearing and friction. It also reduces the weight on the Ischial Tuberosities and redistributes the weight through the back. The Dual Tilt in Space also has independent backrest recline and independent leg rest movement as well as a rise function to support standing. These movements enable a wide range of positions to aid pressure management, postural control and comfort. For further details on this mechanism, with video clips, visit the Mechanisms Section. |
|
Pressure Management Back CushionsThere is a choice of six interchangeable and adjustable pressure management back cushions that enable the chair to be adapted to a single user’s changing needs or to adapt the chair to another user. This ensures greater longevity of its usage. In addition, all cushions can be repositioned to suit a user’s individual seating preferences and fibres added or removed from fibre filled cushions to adjust firmness. Covers can also be removed for cleaning or replacement. See Back Cushion Section for details on the individual cushions. |
|
Pressure Management Seat CushionsThere is a choice of eight interchangeable seat cushions each with different pressure management features. You can purchase one or more cushions to support the different needs of individuals who may use this chair. Cushions and covers are removable for cleaning or replacement. With all these seat cushions we recommend a fabric with four way stretch properties to aid reduction of shear and friction. See Seat Cushion Section for details of the individual cushions. |
|
Chaise CoverThe Madison benefits from a single, full seat cover. This chaise reduces the risk of pressure areas developing due to pinch points and shear and friction when the chair reclines. Designed with a memory foam insert the chaise offers deep comfort. The chaise cover and memory foam can be removed for cleaning and replacement. |
|
CastorsThe Madison comes with heavy-duty lockable castors built in as standard. |
|

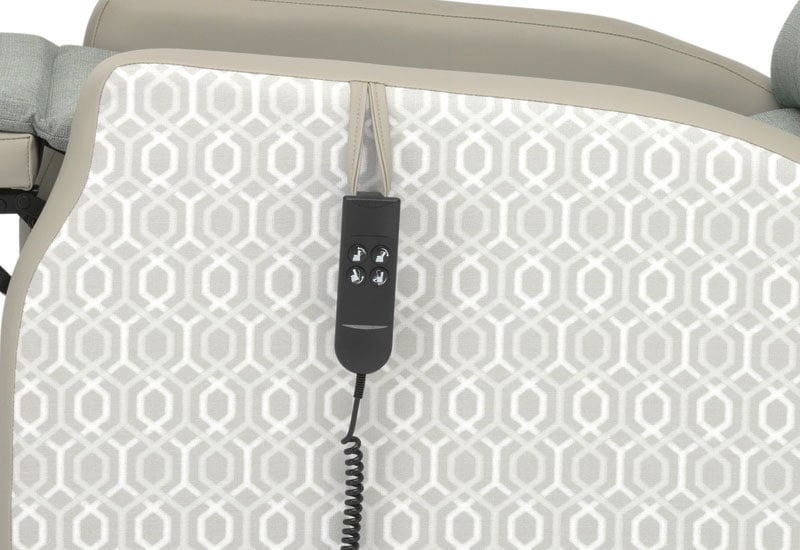

Handset Loop on ArmA handset loop comes as standard on the right hand side arm. As an optional extra you can choose to have this positioned differently. |
|
Heavy-Duty Push HandleFor ease of movement the Madison comes with a heavy-duty push handle with rubber grips. |
|
The following features can be purchased to enhance the functionality of the chair.
Seat Depth AdjustmentThe Madison comes with the option to alter the seat depth with a choice of two sets of detachable adjuster pads, 25.4mm (1") or 50.8mm (2"). The seat depth should be long enough to support the upper part of the legs whilst allowing the back to rest comfortably on the backrest. If the seat is too long the user is likely to slouch in the chair to get their feet on the floor, which puts extra pressure on their lower spine, if too short it will cause additional pressure on the thighs risking potential skin breakdown. |
|
High Wear AreasThe following covers, in matching fabric, can be purchased to protect high wear areas:
|
|
HeadrestsThere are five headrests to choose from, all of which come with a Velcro tab allowing them to fit over the top cushions. For further details on each of these options please refer to the Headrests Section.
|
|
Sliding Footplate*There is an option to purchase a sliding footplate for providing support to the feet and legs when moving a person in the chair. |
Safety Options*For further details on the options below please refer to Safety Options Section.
|
* Please note that some of these additional features will need to be fitted at the point of manufacture.
All our health fabrics are Waterproof, Anti-MRSA, Anti-bacterial, Anti-fungal, Crib 5 and bleach cleanable. All cushions and cushion covers are removable for cleaning purposes.
For our full range of health fabrics please view our:
Overall Weight Limits
The Madison has a weight limit of 127 Kg (20 stone) as standard. The maximum leg rest weight limit is 57 Kg (9 stone) on all models.
Seat Cushion Weight Limits
Certain pressure management seat cushion options have their own overall weight limits, including the Celliform and Dynaform, details of which can be found in the Seat Cushion Section. The maximum leg rest weight limit is unaffected by the seat cushion.
Important Dimensions
| Petite Small | Petite Medium | Petite Large | Small | Medium | Large | |
| Seat Height | 431mm (17") | 431mm (17") | 431mm (17") | 483mm (19") | 483mm (19") | 483mm (19") |
| Seat Width | 457mm (18") | 508mm (20") | 558mm (22") | 457mm (18") | 508mm (20") | 559mm (22") |
| Seat Depth | 508mm (20") | 508mm (20") | 508mm (20") | 508mm (20") | 508mm (20") | 508mm (20") |
| Back Height | 660mm (26") | 660mm (26") | 660mm (26") | 711mm (28") | 711mm (28") | 711mm (28") |
| Arm Height | 152mm (6") | 152mm (6") | 152mm (6") | 178mm (7") | 178mm (7") | 178mm (7") |
Please note that depending on the seat cushion built into the chair the seat height may vary slightly from that shown above.
Sara Stedy and TA180 Compatible Model
| Petite Small | Small | Medium | |
| Seat Height | 431mm (17") | 482mm (19") | 482mm (19") |
| Seat Width | 457mm (18") | 457mm (18") | 508mm (20") |
| Seat Depth | 508mm (20") | 508mm (20") | 508mm (20") |
| Back Height | 660mm (26") | 711mm (28") | 711mm (28") |
| Arm Height | 152mm (6") | 177mm (7") | 177mm (7") |
Please note: when ordering a Sara Stedy/TA180 compatible model, please state 'Sara Stedy compatible' on your order.
|
There is a choice of seven interchangeable and adjustable pressure management back cushions that enable the chair to be adapted to a single user’s changing needs or to adapt the chair to another user. This ensures greater longevity of its usage. In addition, all cushions can be repositioned to suit a user’s individual seating preferences and fibres added or removed from fibre filled cushions to adjust firmness. Covers can also be removed for cleaning. If you would like to find out about what back cushions are available on other healthcare chairs from the Repose range please contact the sales department on 01384 567401. |
 |
Waterfall
Individual fibre filled waterfall cushions, each of which are fully adjustable to accommodate maximum postural support. The waterfall back can be useful for those with mild Kyphosis, Scoliosis and reduced muscle mass on their back.
Large Profile Headrest With Support Lateral
Firm foam lateral back cushion with soft fibre filled profile headrest can provide support for those who have limited trunk control or balance. The profile headrest can provide support to keep the head in good midline alignment which can be useful for those with early stages of neurological conditions such as MS or a Stroke survivor with limited residual impairments.
Comfort Lateral
Soft fibre filled back with lateral support, which can be useful for those who have limited trunk control or balance. It can be useful for those with early stages of neurological conditions such as MS or a Stroke survivor.
Large Profile Headrest With Waterfall
The profile headrest conforms to the head and shoulders which can be useful for individuals with limited neck control with the waterfall back providing soft adjustable lumbar support.
Support Lateral
A foam filled back providing firmer lateral support with a soft fibre filled headrest. The firm lateral support maintains midline trunk alignment which can be useful for those post Stroke or early to mid-stages of neurological conditions.
Large Profile Headrest With Comfort Lateral
This back offers soft fibre filled cushions to provide head, shoulder and trunk support, which can be useful for older users who have lost some muscle control, supporting them in a good postural position with the head in a neutral position. This back can also be useful for early stages of neurological conditions to maintain good positioning without restricting activities.
Waterfall Lateral
The central cushion in this soft fibre filled waterfall back comes with in-built lateral supports which can provide some trunk support for those who have limited trunk control or balance, useful for those with early stages of neurological conditions such as MS or a Stroke survivor with limited residual impairments.
|
There is a choice of eight interchangeable seat cushions each with different pressure management features. You can purchase one or more cushions to support the different needs of individuals who may use this chair. Cushions and covers are removable for cleaning. With all these seat cushions we recommend a fabric with four way stretch properties to aid reduction of shear and friction. If you would like to find out about what seat cushions are available on other healthcare chairs from the Repose range please contact the sales department on 01384 567401. |
|
For standard seating, our softest foam cushion with high quality Reflex foam filler for gentle comfort.
For those who have good posture and mobility but are seated for greater than one hour at a time and require pressure relief and supported comfort. This cushion has a high-density foam base which offers a supportive and firm seat base with a top layer of memory foam to allow immersion into the cushion, giving stability and a large surface area to reduce pressure levels.
The profile version of the Viscoform cushion provides a pommel, which can support those with weak trunk or lower limb muscles who are prone to sliding down and forward in their chair or for those with lower limbspasticity to help maintain hips in the abducted position to create a good seating position.
For those who have good posture and mobility but sit for long periods of time and require pressure relief and supported comfort. Recommended for people with limited muscle bulk or at risk of excessive weight loss. This cushion has a high-density foam which offers a supportive and firm seat base. The foam is topped with a fluid liquid gel in a soft silicone cover which provides a high level of pressure relief. The liquid gel helps to dissipate heat and constantly adapts to the user’s movement.
For those sitting for long periods with specific comfort issues such as a high risk of pressure sores. This cushion uses the latest medical grade silicone gel technology allowing pressure to be evenly distributed. The gel conforms to the shape of the body and equalises to body temperature. The gel cells allow air to flow easily and Coolform is totally odourless and hypoallergenic.
The profile version of the Coolform cushion provides a pommel, which can support those with weak trunk or lower limb muscles who are prone to sliding down and forward in their chair or for those with lower limbspasticity to help maintain hips in the abducted position to create a good seating position.
For those sitting for long periods with specific comfort issues such as a high risk of pressure sores. Gelacell has a unique cell matrix that distributes pressure across the contact area, as it contours and yields in response to weight redistribution. Gelacell absorbs body heat, reducing the risk of creating an environment that could increase pressure risks, the grid design also encourages air circulation. Gelacell is clinically tested and passes all dermatological tests for skin contact.
Maximum weight of user 127 kg (20 stone)
For those at very high risk of developing pressure sores or a history of sores where the highest priority is to prevent further pressure damage. The Dynaform cushion is a dynamic alternating air cushion, which constantly changes the air levels within its air cells to recreate the effect of normal body movements, which provides constant pressure redistribution to prevent pressure build up.
Minimum weight of user 40 kg (6 stone 4lbs)
Maximum weight of user 121 kg (19 stone)
There is a choice of 5 detachable headrests all attached with a velcro tab.
If you would like to find out about what headrest cushions are available on other healthcare chairs from the Repose range please contact the sales department on 01384 567401.
Head Roll
Small Head Pillow
Small Profile Headrest
Large Profile Headrest
Midline Headrest
The most important aspect to consider before purchasing any healthcare chair are the seating positions that are required to aid the conditions of the client and address any pressure and postural management needs.
The Madison is available with a Dual Tilt in Space (DTIS) mechanism. Please check the Sizes Section for all user weights and dimensions before selecting your chair. For demonstrations of the mechanisms described below please watch the relevant videos.
Dual Tilt in Space

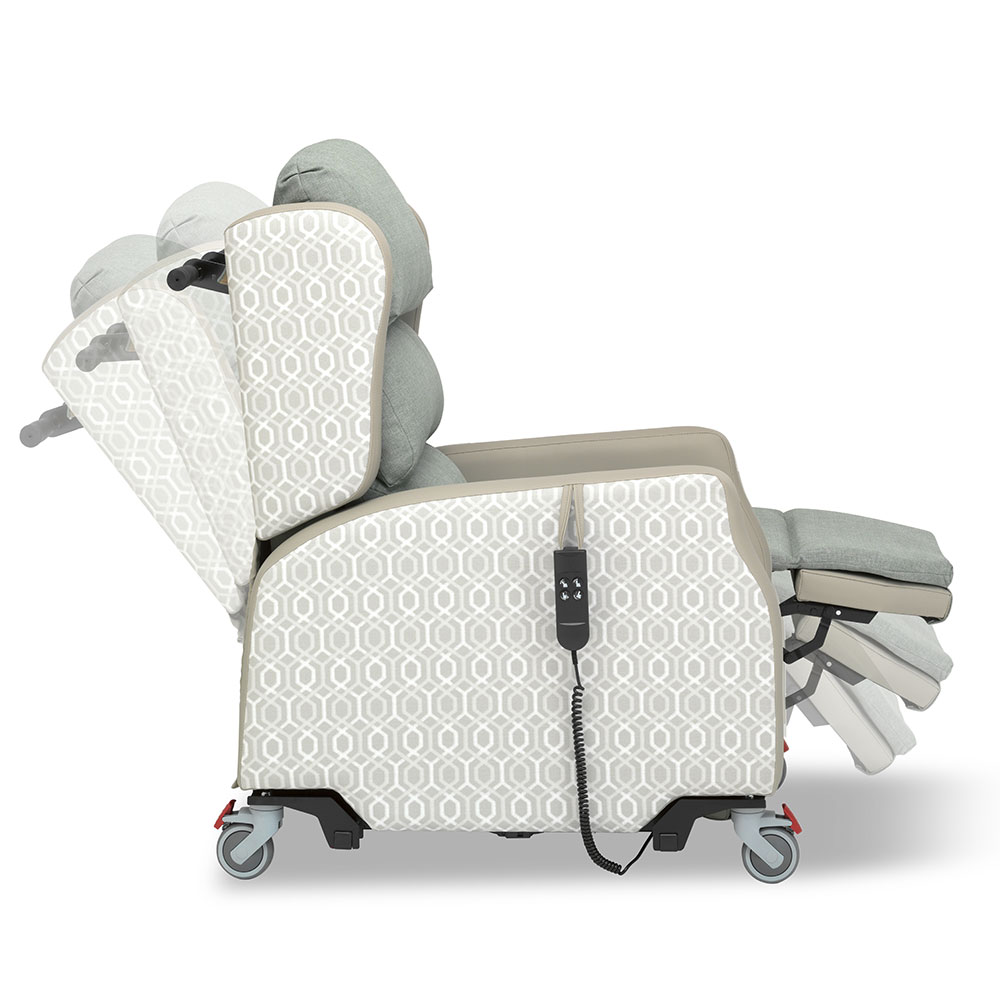

The Tilt in Space allows the seat to back angle to remain the same whilst the whole seating system is tilted backwards. This ensures that the angle of the hips, knees and ankles remain unaffected and the weight on the Ischial Tuberosities is reduced by redistributing the weight through the back. This constant angle also prevents shear and friction during movement.
This feature can also help when transferring someone in a sling as it can support better pelvic positioning by using gravity to position the user in the back of the chair in the optimal position.
This mechanism has a rise position. As the chair rises the seat tilts forward slightly, transferring the weight to the knees whilst taking away the pressure from your hips thus allowing you to walk away more easily from the chair.

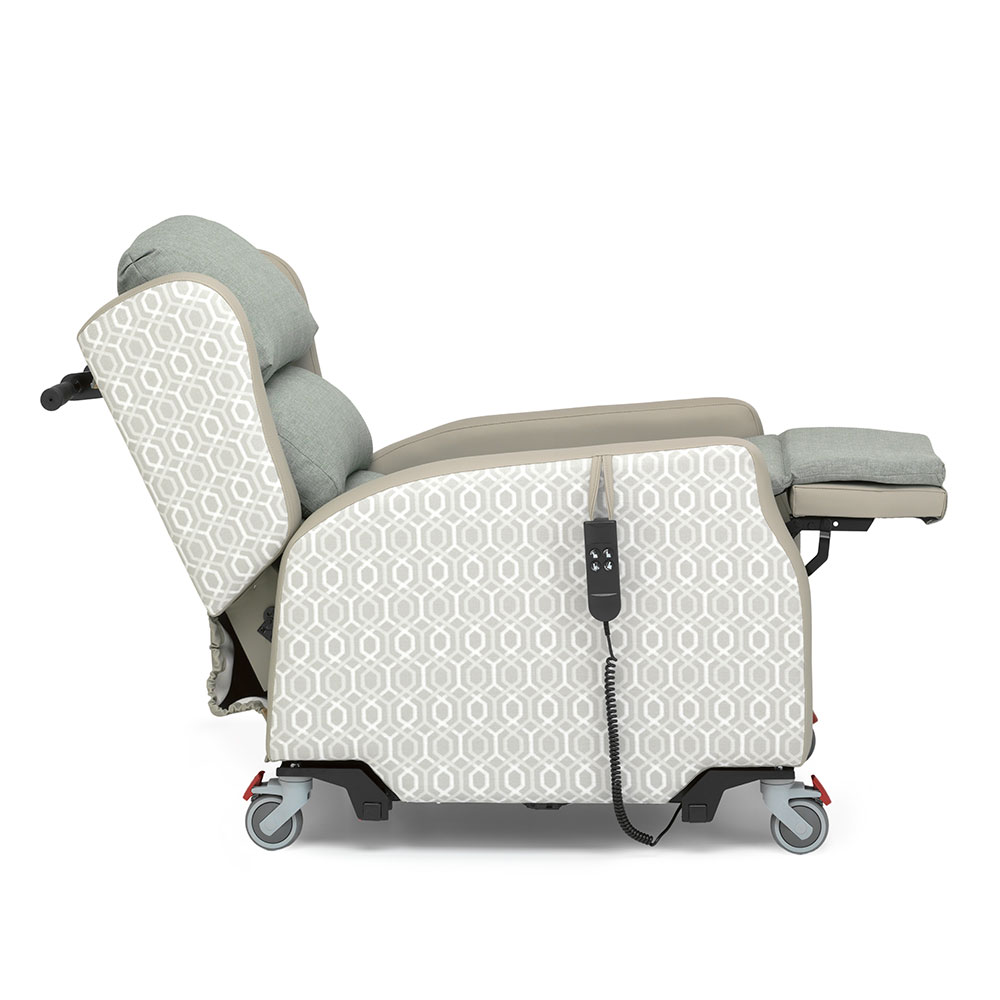

As well as the Tilt in Space and Rise functions, described above, the Dual Tilt in Space mechanism also features an independent backrest recline and independent leg rest movement:
- The independent recline allows the user to maintain flexibility over their body’s position, particularly the amount of hip flexion, enabling them to maximise comfort as well as managing health needs.
- The independent leg rest offers the user additional flexibility over positioning, allowing them to either use it in conjunction with the recline feature to create the optimal posture for their body shape.
The Madison comes with the option to choose from the following safety features:
Styleline Handset with On/Off Button
On some handsets you can choose to have an on/off emergency stop button. Please ask your supplier for the option available on your chair model.
Accupak Rechargeable Battery System
The Accupak power pack enables you to use the chair away from a power supply. The battery provides an average of up to 100 adjustment cycles and will need recharging regularly to retain the quality of usage. It can be charged by simply plugging it in. The system sits out of sight under the chair and the charging outlet is built into the side of the chair.
Please note that the Accupak is not compatible with the Reading Lamp.
Full user instructions can be found in the user manual – please read these carefully before using the chair and Accupak. A copy of the manual can be found in the Brochures Section.
20 Cycle Back Up Unit
This back up system comes as stand-alone unit that can carry out up to 20 chair adjustments. It should only be used as an emergency back-up system.
Full user instructions can be found in your user manual – please read these carefully before using the chair and the 20 cycle back up. A copy of the manual can be found in the Brochures Section.
or view our online brochure.
Below is a summary of our Standard two-year warranty terms and conditions.
There is also the option to upgrade to a five-year comprehensive care plan.
Standard Two-Year WarrantyTwo years on mechanisms, frame, upholstery and electrics. One year on air seat cushions and also on some additional accessories such as the Accupak, 20 Cycle Back up and Relaxor heat and massage systems. Repose will repair or replace, at our discretion and free of charge to the original purchaser, any parts covered by this warranty and that on examination, are found to be defective in material and/or workmanship. The warranty is for parts and labour only. The product or parts requiring repair/replacement must be returned to Repose by you and you will be responsible for the costs of packaging, postage and any postal insurance. Any products returned to Repose must be disinfected and should pose no health hazard. For full details of the warranty including return of faulty products, exclusions etc. please see downloadable 2 year warranty document below. |
|
Upgrade to a Five-Year Warranty*You can upgrade your standard warranty anytime within 14 days after delivery of the chair. You can upgrade to a unique five-year comprehensive care plan that includes:
It truly offers real peace of mind, covering you against:
For full details of the upgrade warranty please see the downloadable 5 year warranty document below. |
|
* non-commercial only
